Schonstedt Combination Kit - REX System with GA-92XTd Magnetic Locator

Model Number: MPC-REX

Features:

• The MPC-Rex Combo Kit is the ultimate solution for utility locating professionals in Water, Sewer, Gas, Electric, and Telecomm industries. It is designed for comprehensive utility detection and provides pinpoint accuracy across various applications.
• Compact and easy to carry, the entire system fits into a custom shoulder bag, making it highly portable and convenient for field use.
• Ultralight Design: The kit is lightweight, enhancing ease of use and reducing operator fatigue during prolonged use.
• Pinpoint Accuracy: Provides accurate locating capabilities, essential for precise utility detection and tracing.

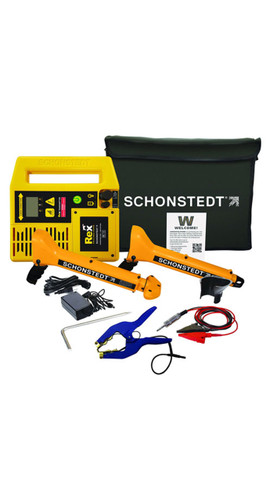

Package Includes:

• GA-92XTd Magnetic Locator
• Rex Multi-Frequency Pipe & Cable Locator
• Holster (Model Number: PC10012)
• Conductive Clip Assembly (Model Number: TM70000), including Standard Conductive Clips — C91010 (Red) and C91011 (Black)
• Soft Shoulder Bag (holds receiver, transmitter, and accessories)
• Ground Stake (Model Number: 208263)
• Power Supply & Cord for Transmitter Charging
• 7-Year Manufacturer's Warranty on GA-92XTd
• 3-Year Manufacturer's Warranty on REX

GA-92XTd Features:

• Digital readout and expanding bar graph displays signal strength and polarity for clear and precise locating.
• Continuous Gain control with a 4-segment LCD indicating range at each quarter turn for adjustable sensitivity.
• Piezoelectric speaker for audible feedback and alerts.
• 24-Hour operational life (intermittent usage) with lithium batteries, offering twice the life of alkaline batteries and a 10-year shelf life.
• 4-Segment BATT LCD for monitoring battery charge levels.
• Lightweight and easy-to-use design that reduces search time and improves efficiency.
• One-hand operation with fingertip control of volume and sensitivity.
• Modular construction with high-performance components and patented HeliFlux sensors.
• Designed to avoid response to aluminum, brass, or copper to focus on relevant signals.

GA-92XTd Specifications:

• Battery Indicator: 4-segment LCD
• Gain: 4-Level LCD - Low (L), Medium (M), High (H), Extra High (XH)
• Volume: 3 Levels: Muted, Medium, and Maximum
• Input Power: One 9V Battery
• Battery Life: 24 Hours (intermittent use)
• Operating Temperature: -13°F to 140°F (-25°C to 60°C)
• Overall Length: Open – 26” (66 cm); Closed – 15.5” (39 cm)
• Nominal Sensor Spacing: 9.5” (24 cm)
• Weight: Approximately 2.4 lb (1.1 kg)
• Water and Dust Resistance: Rated IP54

REX Features:

• Ultralight Design: Receiver and transmitter combined weigh under 7 lbs for ease of handling.
• Compact & Portable: Receiver retracts for easy storage and transportation.
• Multi-Frequency Versatility: Supports 512 Hz, 33 kHz, and 82 kHz frequencies, plus 50/60 Hz passive and 512 Hz sonde detection for versatile applications.
• Transmitter equipped with rechargeable batteries for convenience and sustainability.

REX Specifications:

• Operating Frequency: Active: 512 Hz, 33 kHz, and 82 kHz; Passive: 50 or 60 Hz; Sonde: 512 Hz
• Battery: One 9V battery
• Battery Life: 12 hours (intermittent use)
• Weight (including batteries): 2.8 lbs (1.25 kg)
• Operating Temperature: -4°F to 140°F (-20°C to 70°C)
• Water and Dust Resistance: Rated IP54
• Dimensions: Closed: 17.5" (~44 cm); Extended: 27.7" (~70 cm)
• Max. Depth Capability: Approximately 19' (5.8 m)
• Sonde Mode: Approximately 5’ - 15’ (1.5 m to 4.2 m)

REX Transmitter Specifications:

• Operating Frequency: 82 kHz, 33 kHz & 512 Hz
• Operating Modes: Conductive, Inductive, and Inductive Clamp
• Max. Output Power (Conductive mode @ 1000 Ω load): 512 Hz - 1/2, 1, 2 or 5 W; 33 kHz - 1/2, 1, 2 or 5 W; 82 kHz - 1/2 or 1 W
• Battery Type: Rechargeable NiMH pack (12V)
• Battery Life: 8 Hours (intermittent use)
• Charging: Internal Smart Charger powered by AC/DC power adapter
• Dimensions: 10” x 10.25” x 1.75” (25.4 cm x 26 cm x 4.5 cm)
• Weight (including batteries): 3.5 lbs (1.6 kg)
• Operating Temperature: -4°F to 140°F (-20°C to 70°C)
• Backlighting: White LED array for enhanced visibility
• Water and Dust Resistance: Rated IP54
