Spectra Precision LL300S Series Laser Leveling

The new HL760 Digital Readout (DRO) Receiver includes all the functions of the HL750 but adds a new “Fingerprint” feature. Once paired with the laser, the “Fingerprint” function of the HL760 only accepts the beam from the laser it is paired with, reducing errors and conflict between teams working in close proximity with other lasers. The HL760 provides grade matching and PlaneLok capabilities with all the new lasers. In addition, the HL760 can communicate with another HL760 for long-range wireless remote display and monitoring.

Click here to see the Spectra Precision LL300S Data Sheet

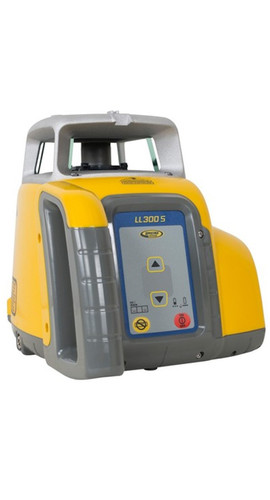

The Spectra Precision® LL300S Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). Designed for durability and reliability, the IP66 protection rating allows the Spectra Precision® LL300S to be operated in adverse environmental conditions, such as heavy rain. Mud and concrete can be washed off with a hose. The LL300S can withstand drops of up to 3 feet (1 meter) onto concrete and tripod tip-over up to 5 feet (1.5 meters), resulting in reduced downtime and lower repair costs.

The LL300S laser level is easy to use: turn it on, it levels, it spins. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self levelled. The new, optional, RC402N long range (330 ft (100 m)) radio remote control makes slope matching a single person operation.

Key Features and Benefits

• Available in system case with receiver, tripod and choice of grade rod
• Fully automatic self-leveling provides fast and accurate setup
• Rechargeable battery pack or alkaline batteries keeps the unit working with no downtime due topower loss
• Optional RC402N remote control allows easy grade matching using the remote control from rod position
• 2,600 ft (800 m) operating diameter
• Single-axis manual slope mode with ‘cross-axis’ self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis
• Built to withstand severe drops of up to 3 ft (1 m) directly onto concrete, or up to 5 ft (1.5 m) when pushed over on a tripod means less downtime and cost due to damage caused by an accidental drop or tip-over
• Comes with a choice of HL450 laser detector or HL760 laser detector. Fingerprinting function can be used when used in conjunction with HL760 receiver

Applications

• Checking/setting elevations, concrete forms, footings, and foundations for small and medium sized jobs
• Basic slope work such as driveways and ramps
• Excavating, digging footings, and septic tanks with CR600 receiver

Packages
